7 inches split function reversing system

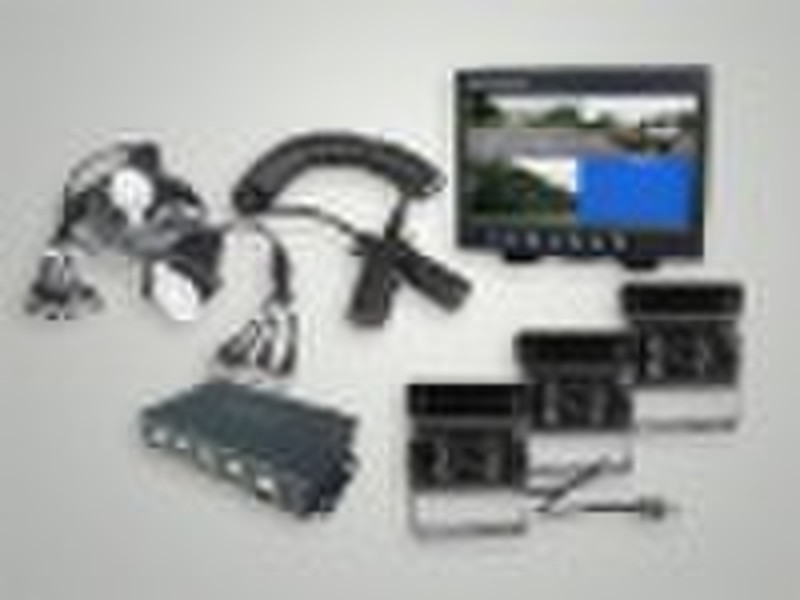

7 inches split function reversing system QUAD SCREEN CAMERA SYSTEMS Model: LW-70A-S04-3 With the 7-pin heavy duty trailer connection kits you can easily install a rearview system on a truck and trailer combination.The four cameras can be mounted seperately on the front, back and both sides of the trailer. With the splitter control box the LCD monitor can displays full, split, triple, quad screen for the 4 cameras. Monitor will automatically switches to the full picture while parking, turns left or right. 1pc x 7-inch monitor 3pcs x 20m Cable 3pcs x CCD IR camera with 4 pin plug (4 Cameras avaiable) 1pc x 10m cable for monitor to tow hitch curly cable(waterproof). 2pcs x Suit brackets for large plugs 1pc x 1m curly cable (waterproof) 1pc x 0.4m cable from curly cable to rear ccd IR camera(waterproof) 1pc x Split control box 12 24 volt input Main Device Specifications: 7 inches LCD Monitor (1)7inches new AU TFT-LCD panel. (2)Stand-alone monitor (16:9) display. (3)400 R.G.B x234 dots (4)System: PAL/NTSC auto switching. (5)Video input V1/V2. (6)Power supply: 12VDC (7)Power consumption: less than 7W (8)Image Up/down, Left/right functions. (9)Suitable for camera/DVD/VCD player. (11)Video signal disappear, display blue screen. (12)Card style remote control. (13)Operating temperature: -20 +50 degrees. (14)Storage temperature: -40 +65degrees. CCD Camera: (1)1/4" Sharp Color CCD sensor (2)TV system : PAL/NTSC (3)Resolution: 420 TV lines (4)With 18 IR LED light ,night vision distance up to 10-15 meters (5)Self-sensitization control the night vision function by the light sensor (6)120 degree wide range angle view (7)Operating Voltage: 9 12VDC (8)Operating temperature: -20 +70 degrees , RH95% Max. (9)Storage temperature: -40 +80 degrees , RH95% Max. (10)Alloy shell, Waterproof, silver/black color selectable Trailer cable (1)7P/12V and 24V spiral cable (2)TPE cable 6 x 1.0 + 1 x 1.5 square millimeter (3)With hand hook injection plastic plugs (4)Coil diameter: 50mm (5)Work length: 3m (6)Maximum extension length: 4.5m 4 Channel Split Control BOx --splitter control box is adopted high technique IC with best anti-jamming, suitable for 12 24V DC power supply. Update Date:2010-12-10 8:59:05
