7 inches Trailer Camera Reversing System

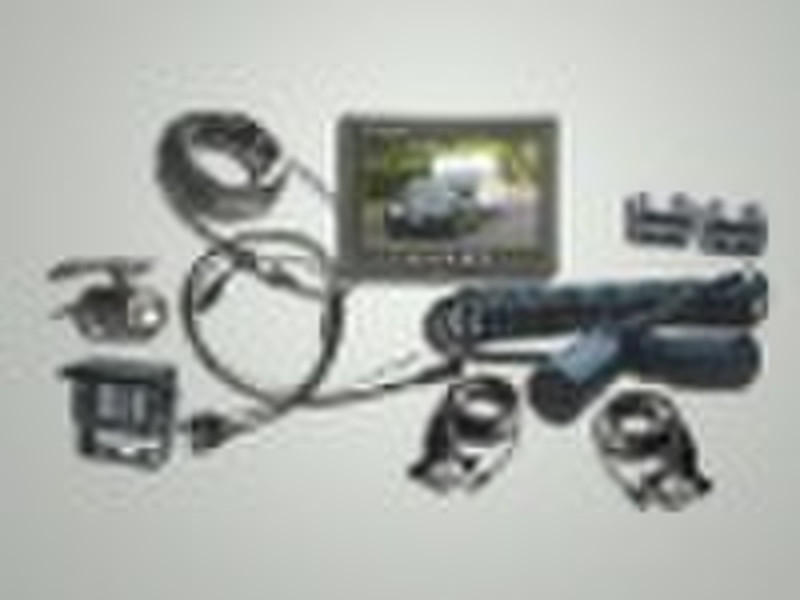

Trailer Camera System Trailer Rear Visual Assistant System Model:LW-70A-6305 TRAILER CAMERA SYSTEMS is a great solution to the poor visibility behind trailers. It offers IR high resolution reversing cameras,LCD monitor and control box that controls power and activation. The image on LCD will be automatically changed to the trailer mounted camera whenever the trailer is attached.When the trailer is disconnected the signal will revert to the camera mounted on towing vehicle. System Contents: 1pc x 7-inch LCD monitor 1pc x 10m Cable 1pc x CMOS camera with 4 pin plug 1pc x CCD IR camera with 4 pin plug 1pc x 10m cable for monitor to tow hitch curly cable(waterproof). 2pcs x Suit brackets for large plugs 1pc x 1m 7-pin curly cable (waterproof). 1pc x 15m cable from curly cable to rear ccd IR camera(waterproof) 1pc x 12 24 Volt control, without control box power supply is 12 volt (Control box: Optional) Main Device Specifications: 7 inches LCD Monitor (1)7inches new AU TFT-LCD panel. (2)Stand-alone monitor (16:9) display. (3)400 R.G.B x234 dots (4)System: PAL/NTSC auto switching. (5)Video input V1/V2. (6)Power supply: 12VDC (7)Power consumption: less than 7W (8)Image Up/down, Left/right functions. (9)Suitable for camera/DVD/VCD player. (11)Video signal disappear, display blue screen. (12)Card style remote control. (13)Operating temperature: -20 +50 degrees. (14)Storage temperature: -40 +65degrees. CCD Camera: (1)1/4" Sharp Color CCD sensor (2)TV system : PAL/NTSC (3)Resolution: 420 TV lines (4)With 18 IR LED light ,night vision distance up to 10-15 meters (5)Self-sensitization control the night vision function by the light sensor (6)120 degree wide range angle view (7)Operating Voltage: 9 12VDC (8)Operating temperature: -20 +70 degrees , RH95% Max. (9)Storage temperature: -40 +80 degrees , RH95% Max. (10)Alloy shell, Waterproof, silver/black color selectable CMOS Camera: (1)Type:Vandalproof reversing number plate camera (2)Image Sensor: OmniVision CMOS (3)TV System: NTSC/PAL Optional (4)Effective Pixels: N:510x496 pixels P:628x586 pixels (5)Horizontal Resolution:420 TV Line (6)Lens Angle:120degrees (Lens:f=2.8 mm) (7)Minimum Illumination:3Lux (8)Operating Temperature: -20 +70 C-degrees RH95% Max (9)Power Supply:DC12V (10)Size:18.5x23 mm (11)N.W:150g (12)Waterproof Rate:IP67 (13)Shell Material:Aluminium alloy Trailer cable (1)7P/12V and 24V spiral cable (2)TPE cable 6 x 1.0 + 1 x 1.5 square millimeter (3)With hand hook injection plastic plugs (4)Coil diameter: 50mm (5)Work length: 3m (6)Maximum extension length: 4.5m Update Date:2010-12-10 8:59:22
